Heavy Vehicles

  • Bucket Cylinder
  •  Boom Cylinder
  • Stick Cylinder
  • Bulldozing Cylinder
  •  Rotary Actuator
  • Angle Push Cylinder
  • Chassis Telescopic Cylinder

Can be customized according to customer requirements.



Features: Control the action of the bucket

Specification: Bore diameter: 50mm~105mm
Rod diameter: 25mm~70mm
Stroke≤1000 mm

Thrust force: Maximum 255KN
(Bore diameter: 105mm/pressure29.4MPa)

Features: Control the movement of the forearm
Specification: Bore diameter: 50mm~115mm
Rod diameter: 25mm~70mm
Stroke≤1000mm
Thrust force: Maximum 305KN
(Bore diameter: 115mm/pressure29.4MPa)


Features: Control the lifting motion of the big arm
Specification: Bore diameter: 50mm~125mm
Rod diameter: 25mm~75mm
Stroke≤1000mm
Thrust force: Maximum 361KN
(Bore diameter: 125mm/pressure29.4MPa)

Features: Control the action of the bulldozer
Specification:
Bore diameter: 50mm~140mm
Rod diameter: 25mm~80mm
Stroke≤250mm
Thrust force: Maximum 453KN
(Bore diameter: 140mm/pressure29.4MPa)

Features: Deflection of the big arm
Specification:
Bore diameter: 50mm~120mm
Rod diameter: 25mm~75mm
Stroke≤1000mm
Thrust force: Maximum 333KN
(Bore diameter: 120mm/pressure29.4MPa)

For 65T~700T medium to large excavators, Hydromasion could provide:
• Bucket Cylinder
• Boom Cylinder
• Stick Cylinder
• Tightening Cylinder


Can be customized according to customer requirements.



Features: Control the action of the bucket
Specification:
Bore diameter: 200mm~360mm
Rod diameter: 140mm~260mm
Stroke ≤2500 mm
Thrust force: Maximum 3560.8KN
(Bore diameter: 420mm/pressure35MPa)


Features: Control the lifting motion of the big arm
Specification:
Bore diameter: 200mm~420mm
Rod diameter: 140mm~300mm
Stroke ≤3500mm
Thrust force: Maximum 4846.6KN
                                                                                              (Bore diameter: 420mm/pressure35MPa)

Features: Control the movement of the forearm
Specification:
Bore diameter: 210mm~360mm
Rod diameter: 145mm~260mm
Stroke ≤2600mm
Thrust force: Maximum 3560.8KN
(Bore diameter: 360mm/pressure35MPa)

Features: Control the action of track tension
Specification: Bore diameter: 280mm~380mm
Rod diameter: 170mm~300mm
Stroke ≤700mm
Thrust force: Maximum 3967.4KN
(Bore diameter: 380mm/pressure35MPa)

• Rotary Actuator
• Luffing Cylinder
• Telescopic Cylinder
• Outrigger Cylinder
• Leveling Cylinder
• Steering Cylinder


Can be customized according to customer requirements.

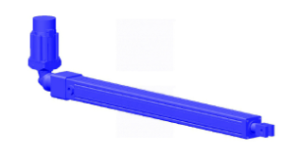

Features: Realize telescopic function
Specification:
Thrust force:1-1000KN
Stroke: 0-2000mm

Voltage: 24V,48V,220V,380V…

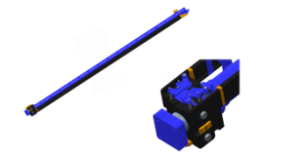

Features: Realize platform and crank arm swing
Specification: Torque: 500~5000N.m
Swing angle: 0~360°

Pressure:21MPa(standard working pressure)

Features: Realizing the up and down pitching rotation of the boom is the main driving force for lifting
Specification:
Bore diameter: 50mm~350mm
Rod diameter: 30mm~300mm
Stroke  ≤3000 mm
Pressure:30MPa(Maximum pressure)

Features: Realize the linear telescopic movement of the boom
Specification:
Bore diameter: 45mm~200mm
Rod diameter: 32mm~180mm
Stroke  ≤15000mm
Pressure:30MPa(Maximum pressure)

Features: Support the weight of the entire equipment when the crane is lifting
Specification:
Bore diameter: 45mm~200mm
Rod diameter: 30mm~180mm
Stroke  ≤2000mm
Pressure:30MPa(Maximum pressure)

Features: Adjust the angle of the aerial work platform
Specification:
Bore diameter: 85mm~180mm
Rod diameter: 50mm~100mm
Stroke  ≤300mm
Pressure:30MPa(Maximum pressure)

Features: Steering system for chassis tires of aerial work vehicles
Specification:
Bore diameter: 63mm~200mm
Rod diameter: 36mm~140mm
Stroke  ≤1000mm
Pressure:30MPa(Maximum pressure)

• Luffing Cylinder
• Telescopic Cylinder
• Outrigger Cylinder
• Suspension Cylinder
• Outrigger Expansion Cylinder
• Counterweight Cylinder
• Steering Cylinder


Can be customized according to customer requirements.



Features: Realizing the up and down pitching rotation of the boom is the main driving force for lifting
Specification:
Bore diameter: 100mm~560mm
Rod diameter: 50mm~480mm
Stroke  ≤5000 mm
Pressure: Maximum 36MPa

Features: Realize the linear telescopic movement of the boom
Specification:
Bore diameter: 75mm~360mm
Rod diameter: 50mm~320mm
Stroke  ≤22000mm
Pressure:Maximum 42MPa

Features: Support the weight of the entire equipment when the crane is lifting
Specification:
Bore diameter: 70mm~360mm
Rod diameter: 45mm~320mm
Stroke   ≤800mm
Pressure: Maximum 42MPa

Features: Damping system for crane chassis
Specification:
Bore diameter: 85mm~180mm
Rod diameter: 50mm~100mm
Stroke  ≤300mm
Pressure:Maximum 35MPa

Features: Extend the outrigger cylinder horizontally
Specification:
Bore diameter: 50mm~75mm
Rod diameter: 25mm~55mm
Stroke  ≤2500mm
Pressure:Maximum 35MPa

Features: For the installation of counterweights
Specification:
Bore diameter: 85mm~320mm
Rod diameter: 55mm~180mm
Stroke  ≤1500mm
Pressure: Maximum 35MPa

Features: Steering system for crane chassis tires
Specification:
Bore diameter: 63mm~200mm
Rod diameter: 36mm~140mm
Stroke  ≤1000mm
Pressure:Maximum 35MPa

For the rotary drilling rigs less than 580kNm, Hydromasion could provide you:
• Luffing Cylinder
• Mast Cylinder (correcting cylinder)
• Pressurized Cylinder


Can be customized according to customer requirements.



Features: Control the luffing angle, adjust the distance between the mast and the host
Specification:
Bore diameter:125mm~250mm
Rod diameter:90mm~160mm
Stroke  ≤1640 mm
Pressure: up to 32MPa

Features: Control the mast, adjust the angle of the mast and the ground
Specification:
Bore diameter:140mm~350mm
Rod diameter:90mm~230mm
Stroke  ≤5550mm
Pressure: up to 32MPa

Features: Control the lifting and lowering of the power head
Specification:
Bore diameter:125mm~210mm
Rod diameter:90mm~150mm
Stroke  ≤8500mm
Pressure: up to 35MPa

• Front Suspension Cylinder
• Rear Suspension Cylinder
• Lifting Cylinder
• Steering Cylinder
• Piston Accumulator


Can be customized according to customer requirements.



Features: Support weight, absorb, and eliminate vibration
Specification:
Bore diameter: 150mm~450mm
Rod diameter: 120mm~400mm
Stroke  ≤400mm
Pressure: Maximum38MPa

Features: Support weight, absorb, and eliminate vibration
Specification:
Bore diameter: 150mm~450mm
Rod diameter: 120mm~400mm
Stroke  ≤400mm
Pressure:Maximum38MPa

Features: Lift/lower the body for cargo dumping
Specification:
Bore diameter: 120mm~380mm
Rod diameter: 90mm~350mm
Generally two-stage or three-stage cylinder

Features: Wheel steering provides assistance
Specification:
Bore diameter: 63mm~210mm
Rod diameter: 40mm~100mm
Stroke  ≤2000mm
Thrust force: Maximum779KN
(Bore diameter 210mm/pressure22.5MPa)

Features: The load is equally distributed to the middle and rear axles in real time to balance the bearing capacity of the axles.
Pressure: Maximum27.5MPa
